Nikon AF 180mm f2.8D IF-ED

Nikon AF 180mm f2.8D IF-ED

Specifications

• Focal length : 180mm
• Picture angle : 13° 40' with film (F-series) SLRs 9° with digital (D-series) SLRs
• Maximum aperture : f/2.8
• Minimum aperture marked on scale : f/22
• Lens construction : 8 elements in 6 groups; 1 ED glass element
• Minimum focus distance : 1.5m (59 inches)
• Maximum reproduction ratio : 1:6.6
• Filter attachment size : 72mm
• Dimensions : diameter x extension from lens mount (approx.) 78.5mm x 144mm (3.09" x 5.66")
• Weight : (approx.) 760g (1.67lb)
• Hood : Built-in
• Case : CL-S4, CL-38 (optional)
• Usable teleconverters : TC-201 or TC-14A (Usable, but there is occasional vignetting)

Specifications

• Focal length : 180mm
• Picture angle : 13° 40' with film (F-series) SLRs 9° with digital (D-series) SLRs
• Maximum aperture : f/2.8
• Minimum aperture marked on scale : f/22
• Lens construction : 8 elements in 6 groups; 1 ED glass element
• Minimum focus distance : 1.5m (59 inches)
• Maximum reproduction ratio : 1:6.6
• Filter attachment size : 72mm
• Dimensions : diameter x extension from lens mount (approx.) 78.5mm x 144mm (3.09" x 5.66")
• Weight : (approx.) 760g (1.67lb)
• Hood : Built-in
• Case : CL-S4, CL-38 (optional)
• Usable teleconverters : TC-201 or TC-14A (Usable, but there is occasional vignetting)

Nikon AF 135mm f2D DC

Nikon AF 135mm f2D DC

Specifications

• Focal length : 135mm
• Picture angle : 18° with film (F-series) SLRs 12° with digital (D-series) SLRs
• Maximum aperture : f/2
• Minimum aperture marked on scale : f/16
• Lens construction : 7 elements in 6 groups
• Minimum focus distance : 1.1m (43.3 inches)
• Maximum reproduction ratio : 1:7.1
• Filter attachment size : 72mm
• Dimensions : diameter x extension from lens mount (approx.) 79mm x 120mm (3.1" x 4.72")
• Weight : (approx.) 815g (1.79lb)
• Hood : Built-in
• Case : CL-S4, CL-38 (optional)
• Usable teleconverters : TC-14B

Specifications

• Focal length : 135mm
• Picture angle : 18° with film (F-series) SLRs 12° with digital (D-series) SLRs
• Maximum aperture : f/2
• Minimum aperture marked on scale : f/16
• Lens construction : 7 elements in 6 groups
• Minimum focus distance : 1.1m (43.3 inches)
• Maximum reproduction ratio : 1:7.1
• Filter attachment size : 72mm
• Dimensions : diameter x extension from lens mount (approx.) 79mm x 120mm (3.1" x 4.72")
• Weight : (approx.) 815g (1.79lb)
• Hood : Built-in
• Case : CL-S4, CL-38 (optional)
• Usable teleconverters : TC-14B

Nikon AF 105mm f2D DC

Nikon AF 105mm f2D DC

Specifications
Focal length     105mm
Picture angle     23° 20' with film (F-series) SLRs
15° 20' with digital (D-series) SLRs
Maximum aperture     f/2
Minimum aperture marked on scale     f/16

Lens construction

6 elements in 6 groups, plus built-in rear glass plate for dust protection
Minimum focus distance     90cm (3ft)
Maximum reproduction ratio     1:7.7
Filter attachment size     72mm
Dimensions: diameter x extension from lens mount (approx.)     79mm x 111mm
Weight (approx.)     640g
Hood     Built-in
Case     Hard Lens Case CL-38 (optional), CL-S3 (optional), Flexible Lens Pouch No. 63 (optional)

Specifications
Focal length     105mm
Picture angle     23° 20' with film (F-series) SLRs
15° 20' with digital (D-series) SLRs
Maximum aperture     f/2
Minimum aperture marked on scale     f/16

Lens construction

6 elements in 6 groups, plus built-in rear glass plate for dust protection
Minimum focus distance     90cm (3ft)
Maximum reproduction ratio     1:7.7
Filter attachment size     72mm
Dimensions: diameter x extension from lens mount (approx.)     79mm x 111mm
Weight (approx.)     640g
Hood     Built-in
Case     Hard Lens Case CL-38 (optional), CL-S3 (optional), Flexible Lens Pouch No. 63 (optional)

Nikon AF 28mm f2.8D

Nikon AF 28mm f2.8D

Specifications

Focal length     28mm
Picture angle     74° with film (F-series) SLRs
53° with digital (D-series) SLRs
Maximum aperture     f/2.8
Minimum aperture marked on scale     f/22

Lens construction

6 elements in 6 groups

Minimum focus distance     0.25m (9.84 inches)
Maximum reproduction ratio     1:5.6
Filter attachment size     52mm
Dimensions: diameter x extension from lens mount (approx.)     65mm x 44.5mm
(2.55" x 1.75")
Weight (approx.)     205g (0.45lb)
Hood     Screw-in Lens Hood HN-2 (optional)
Case     CL-S1, CL-30S, CL-34A (optional)
Usable teleconverters     TC-201 or TC-14A

Specifications

Focal length     28mm
Picture angle     74° with film (F-series) SLRs
53° with digital (D-series) SLRs
Maximum aperture     f/2.8
Minimum aperture marked on scale     f/22

Lens construction

6 elements in 6 groups

Minimum focus distance     0.25m (9.84 inches)
Maximum reproduction ratio     1:5.6
Filter attachment size     52mm
Dimensions: diameter x extension from lens mount (approx.)     65mm x 44.5mm
(2.55" x 1.75")
Weight (approx.)     205g (0.45lb)
Hood     Screw-in Lens Hood HN-2 (optional)
Case     CL-S1, CL-30S, CL-34A (optional)
Usable teleconverters     TC-201 or TC-14A

Nikon AF 24mm f2.8D

Nikon AF 24mm f2.8D

Specifications
Focal length     28mm
Picture angle     74° with film (F-series) SLRs
53° with digital (D-series) SLRs
Maximum aperture     f/2.8
Minimum aperture marked on scale     f/22

Lens construction

6 elements in 6 groups
Minimum focus distance     0.25m (9.84 inches)
Maximum reproduction ratio     1:5.6
Filter attachment size     52mm
Dimensions: diameter x extension from lens mount (approx.)     65mm x 44.5mm
(2.55" x 1.75")
Weight (approx.)     205g (0.45lb)
Hood     Screw-in Lens Hood HN-2 (optional)
Case     CL-S1, CL-30S, CL-34A (optional)
Usable teleconverters     TC-201 or TC-14A

Specifications
Focal length     28mm
Picture angle     74° with film (F-series) SLRs
53° with digital (D-series) SLRs
Maximum aperture     f/2.8
Minimum aperture marked on scale     f/22

Lens construction

6 elements in 6 groups
Minimum focus distance     0.25m (9.84 inches)
Maximum reproduction ratio     1:5.6
Filter attachment size     52mm
Dimensions: diameter x extension from lens mount (approx.)     65mm x 44.5mm
(2.55" x 1.75")
Weight (approx.)     205g (0.45lb)
Hood     Screw-in Lens Hood HN-2 (optional)
Case     CL-S1, CL-30S, CL-34A (optional)
Usable teleconverters     TC-201 or TC-14A

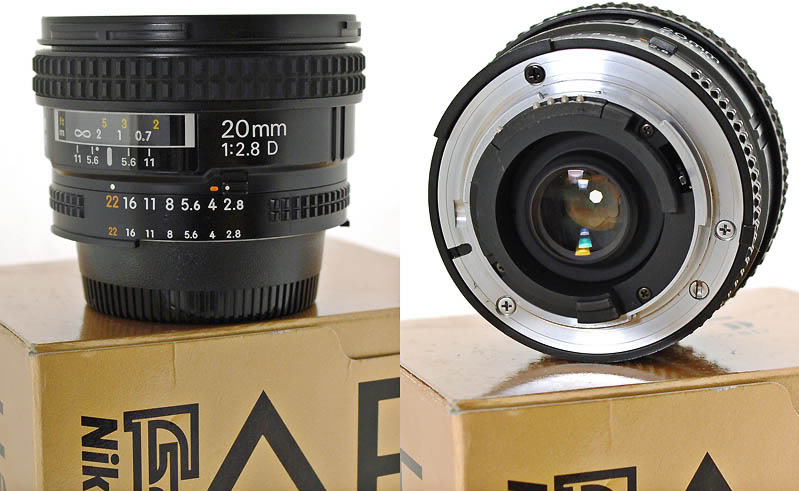

Nikon AF 20mm f2.8D

Nikon AF 20mm f2.8D

Specifications
Focal length     20mm
Picture angle     94° with film (F-series) SLRs
70° with digital (D-series) SLRs
Maximum aperture     f/2.8
Minimum aperture marked on scale     f/22

Lens construction

12 elements in 9 groups
Minimum focus distance     0.25m (9.8 inches)
Maximum reproduction ratio     1:8.3
Filter attachment size     62mm
Dimensions: diameter x extension from lens mount (approx.)     69mm x 42.5mm
(2.71" x 1.67")
Weight (approx.)     270g (0.59lb)
Hood     HB-4 (optional)
Case     CL-S1, CL-30S, CL-37 (optional)
Usable teleconverters     TC-201 or TC-14A

Specifications
Focal length     20mm
Picture angle     94° with film (F-series) SLRs
70° with digital (D-series) SLRs
Maximum aperture     f/2.8
Minimum aperture marked on scale     f/22

Lens construction

12 elements in 9 groups
Minimum focus distance     0.25m (9.8 inches)
Maximum reproduction ratio     1:8.3
Filter attachment size     62mm
Dimensions: diameter x extension from lens mount (approx.)     69mm x 42.5mm
(2.71" x 1.67")
Weight (approx.)     270g (0.59lb)
Hood     HB-4 (optional)
Case     CL-S1, CL-30S, CL-37 (optional)
Usable teleconverters     TC-201 or TC-14A

Nikon AF 18-35mm f3.5-4.5D IF-ED

Nikon AF 18-35mm f3.5-4.5D IF-ED

• Nikon AF Zoom-NIKKOR 18-35mm f3.5-4.5D IF ED Lens
• Extra-low Dispersion (ED) glass element reduces chromatic aberrations providing superior optical performance, even at maximum aperture.
• Focus distance of 1 foot to infinity is ideal for landscape, snapshot, candid, environmental, close-up and full length portrait photography.
• Nikon D-type design provides precise distance information for flash and ambient light exposure processes.
• Internal Focusing (IF) design for smooth and fast auto focus.

Detailed specifications of the Nikon AF Zoom NIKKOR 18-35mm f3.5-4.5D IF ED Len

• Focal Length Range : 18-35mm
• Zoom Ratio : 1.9x
• Maximum Aperture : 3.5
• Minimum Aperture : 22
• Autofocus : Yes
• Distance Information : Yes
• ED Glass Elements : Yes
• Super Integrated Coating : Yes
• Internal Focusing : Yes
• Minimum Focus Distance : 1.1 ft. (0.33m)
• Maximum Angle of View : 100°
• Minimum Angle of View : 62°
• Lens (Elements) : 11
• Maximum Reproduction Ratio : 1/6.7
• Dimensions : 3.6x3.2in.
• (Diameter x Length) : 91.4x
  Weight : (370g)
  Mount Type : Nikon F-Bayonet
  Accepts Filter Type : Screw-on
  Filter Size : 77mm
  Lens Attachment Size : 77mm
  Lens Case : CL-S2
  Lens Hood : HB-23
  Supplied Accessories : HB-23 Hood ,77mm lens cap Rear lens cap

• Nikon AF Zoom-NIKKOR 18-35mm f3.5-4.5D IF ED Lens
• Extra-low Dispersion (ED) glass element reduces chromatic aberrations providing superior optical performance, even at maximum aperture.
• Focus distance of 1 foot to infinity is ideal for landscape, snapshot, candid, environmental, close-up and full length portrait photography.
• Nikon D-type design provides precise distance information for flash and ambient light exposure processes.
• Internal Focusing (IF) design for smooth and fast auto focus.

Detailed specifications of the Nikon AF Zoom NIKKOR 18-35mm f3.5-4.5D IF ED Len

• Focal Length Range : 18-35mm
• Zoom Ratio : 1.9x
• Maximum Aperture : 3.5
• Minimum Aperture : 22
• Autofocus : Yes
• Distance Information : Yes
• ED Glass Elements : Yes
• Super Integrated Coating : Yes
• Internal Focusing : Yes
• Minimum Focus Distance : 1.1 ft. (0.33m)
• Maximum Angle of View : 100°
• Minimum Angle of View : 62°
• Lens (Elements) : 11
• Maximum Reproduction Ratio : 1/6.7
• Dimensions : 3.6x3.2in.
• (Diameter x Length) : 91.4x
  Weight : (370g)
  Mount Type : Nikon F-Bayonet
  Accepts Filter Type : Screw-on
  Filter Size : 77mm
  Lens Attachment Size : 77mm
  Lens Case : CL-S2
  Lens Hood : HB-23
  Supplied Accessories : HB-23 Hood ,77mm lens cap Rear lens cap

Nikon AF 16mm f2.8D Fisheye

Nikon AF 16mm f2.8D Fisheye

Specifications
Focal length     16mm
Picture angle     180° with film (F-series) SLRs
107° with digital (D-series) SLRs
Maximum aperture     f/2.8
Minimum aperture marked on scale     f/22

Lens construction

8 elements in 5 groups;
Minimum focus distance     0.25m (9.84 inches)
Maximum reproduction ratio     1:10
Filter attachment size     Provided
Overall dimensions (approx.)     63mm diameter x 57mm long
(2.48" x 2.24")
Extension from the lens mount (approx.)     57mm (2.24")
Weight (approx.)     290g (0.63lb)
Hood     Built-in
Case     CL-S1, CL-31S (optional)
Usable teleconverters     TC-201 or TC-14A

Specifications
Focal length     16mm
Picture angle     180° with film (F-series) SLRs
107° with digital (D-series) SLRs
Maximum aperture     f/2.8
Minimum aperture marked on scale     f/22

Lens construction

8 elements in 5 groups;
Minimum focus distance     0.25m (9.84 inches)
Maximum reproduction ratio     1:10
Filter attachment size     Provided
Overall dimensions (approx.)     63mm diameter x 57mm long
(2.48" x 2.24")
Extension from the lens mount (approx.)     57mm (2.24")
Weight (approx.)     290g (0.63lb)
Hood     Built-in
Case     CL-S1, CL-31S (optional)
Usable teleconverters     TC-201 or TC-14A

Nikon AF 14mm f2.8D ED

Nikon AF 14mm f2.8D ED

Specifications
Focal length     14mm
Picture angle     114° with film (F-series) SLRs
90° with digital (D-series) SLRs
Maximum aperture     f/2.8
Minimum aperture marked on scale     f/22

Lens construction
14 elements in 12 groups;
1 ED glass element;
2 aspherical elements
Minimum focus distance     0.2m (7.87 inches)
Maximum reproduction ratio     1:6.5
Filter attachment size     Provided
Dimensions: diameter x extension from lens mount (approx.)     87mm x 86.5mm
(3.42" x 3.40")
Weight (approx.)     670g (1.47lb)
Hood     Built-in
Case     CL-S2 (Optional)
Usable teleconverters     TC-201 or TC-14A

Specifications
Focal length     14mm
Picture angle     114° with film (F-series) SLRs
90° with digital (D-series) SLRs
Maximum aperture     f/2.8
Minimum aperture marked on scale     f/22

Lens construction
14 elements in 12 groups;
1 ED glass element;
2 aspherical elements
Minimum focus distance     0.2m (7.87 inches)
Maximum reproduction ratio     1:6.5
Filter attachment size     Provided
Dimensions: diameter x extension from lens mount (approx.)     87mm x 86.5mm
(3.42" x 3.40")
Weight (approx.)     670g (1.47lb)
Hood     Built-in
Case     CL-S2 (Optional)
Usable teleconverters     TC-201 or TC-14A

Nikon AF 10.5mm f2.8G ED DX Lenses (Fisheye-Nikkor)

Nikon AF 10.5mm f2.8G ED DX Lenses (Fisheye-Nikkor)

The first fisheye lens developed exclusively for use with Nikon DX format.

Equivalent to 16mm focal length on a 35mm.
Close-Range Correction (CRC) provides high performance for sharper images when taking pictures up close.

Design enables a combination of wider angle of view with optical characteristics that are optimized for Nikon digital SLR camera sensors.

Rounded diaphragm makes out-of-focus elements appear more natural.

Ultra-wide picture angle of 180 degrees on DX sensor is achieved by producing a smaller image circle (the size of the image that is projected by the lens onto the sensor) enabling a smaller lens diameter, lighter weight and optimal image quality from center-to-edge-to-corner on the image.

Minimum focus distance of 0.14m (5.5 in.) or 0.03m (1.2 in.) from the lens front, makes extreme close-ups possible.

Extra-low Dispersion (ED) glass element minimizes chromatic aberration.

The first fisheye lens developed exclusively for use with Nikon DX format.

Equivalent to 16mm focal length on a 35mm.
Close-Range Correction (CRC) provides high performance for sharper images when taking pictures up close.

Design enables a combination of wider angle of view with optical characteristics that are optimized for Nikon digital SLR camera sensors.

Rounded diaphragm makes out-of-focus elements appear more natural.

Ultra-wide picture angle of 180 degrees on DX sensor is achieved by producing a smaller image circle (the size of the image that is projected by the lens onto the sensor) enabling a smaller lens diameter, lighter weight and optimal image quality from center-to-edge-to-corner on the image.

Minimum focus distance of 0.14m (5.5 in.) or 0.03m (1.2 in.) from the lens front, makes extreme close-ups possible.

Extra-low Dispersion (ED) glass element minimizes chromatic aberration.

Nikon D3100 Setup

Nikon D3100 Setup

Nikon D3100

Nikon D3100





Nikon D 90

Nikon D 90
